Services Provided

Warranty

1 year warranty for all power systems and instruments, in case of manufacturing defect.

Delivery Time

1 week delivery time for power systems and instruments

Servicing & Repairs

2 week time for in-house servicing and repairs.

Stand-by Systems

Provisions of stand-by systems are also available in case some repairs are required for the system.

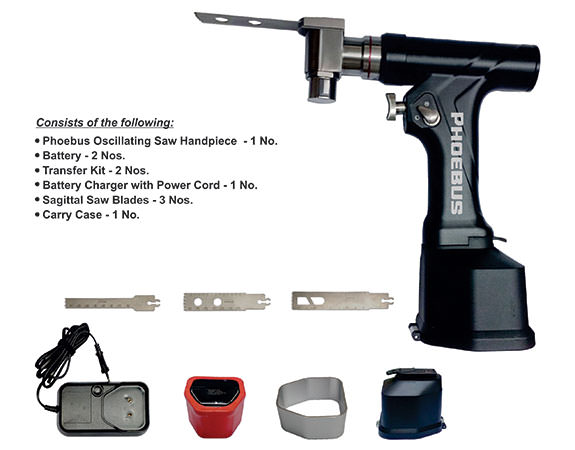

Phoebus Saw Hand Piece

The Phoebus is a lightweight saw hand piece used in various types of orthopedic surgeries. This powerful system is a must have for surgeons performing Arthroplasties.

The hand piece is also provided with 2 batteries with battery cases/ Transfer Kit, Battery charger with power cord. For initial testing the Phoebus case is also equipped with 3 sagittal blades.

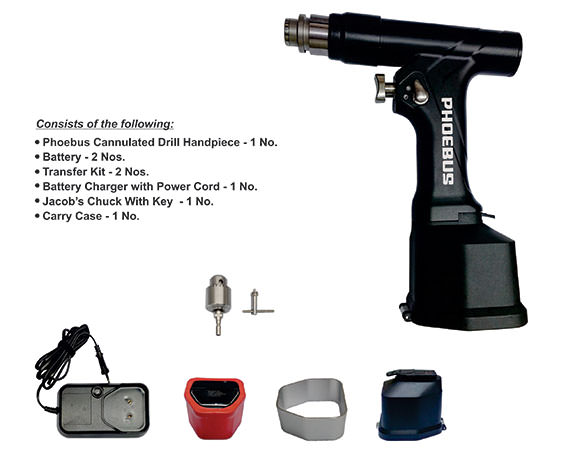

Phoebus Drill hand Piece

The Phoebus is a cannulated high powered-drill used in reaming. The Phoebus drill hand piece can be used for nailing as well as total hip Arthroplasties.

The hand piece is also provided with 2 batteries with battery cases/ Transfer Kit, Battery charger with power cord, and Jacob Chuck with key. For initial testing the Phoebus case is also equipped with 1 EMT drill bit.

Automatic Tourniquet System (ATS)

A tourniquet system is a constricting or compression device used to control the blood flow to any particular extremity. It is used to constrict the blood flow during any joint replacement surgery.

Technical Features

The ATS is comprised of the main body and cuffs. The cuffs in this system are available in three main sizes one for adult upper limbs (medium), one for adult lower limbs (Large), and one for children limbs (Small).

The system adopts an imported transducer with the function of calculating and equalizing the pressure, and also features a high quality motor for lower noise.  The motor also allows for quick pressure building so that as little time as possible is wasted in the operation theatre. The valves also deflate automatically allowing for more convenience.

Performance Parameters

  • Pressure range extends from 7.5mm Hg to 675mm Hg
  • Power of ATS is less than 25 Watts
  • The ATS can be set to any range between 0-99 minutes
  • The power supply is approximately 220V at 5Hz
  • Available in three different models according to the surgeons’ need.

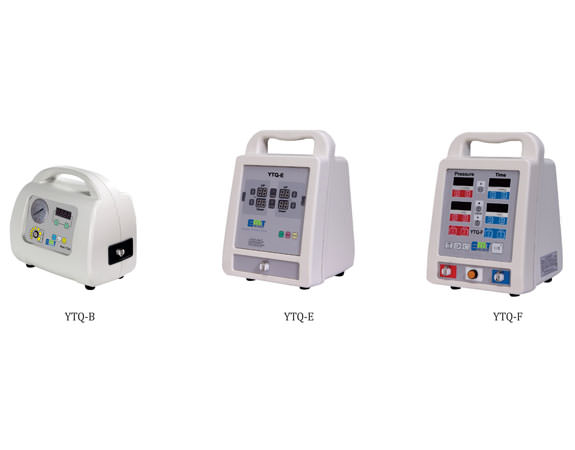

Comparison between three models of YTQ systems

Features YTQ-B YTQ-E YTQ-F
Cuffs provided 1 set 1 set 2 sets
Ports supported 1 for unilateral surgery 1 for unilateral surgery 2 for bilateral
Pressure maintained without power Yes Yes Yes
Battery backup No No Yes
Pressure Display Manual Digital Digital

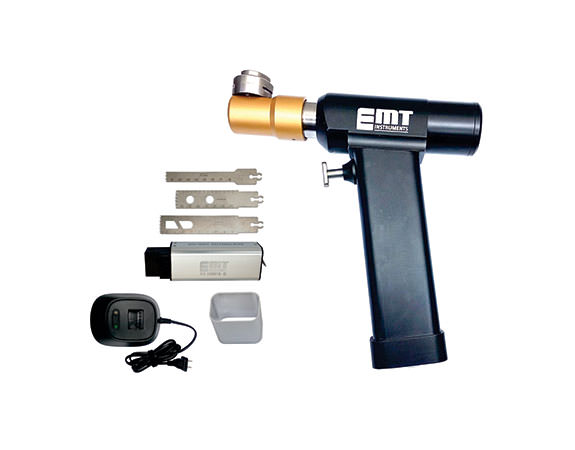

EMT Saw Hand Piece

EMT hand piece is important for Orthopaedic procedures. The machine is affordable and convenient to use, and offers low noise.

Salient features –

  1. The whole power tool is autoclavable except Battery and Battery Charger.
  2. The Machine is autoclavable at 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa3. The machine is use for application of cutting large bone during joint surgery and orthopaedic surgical procedure.
  3. The Machine is good and reliably performance. Machine at an affordable prices.
  4. The product bears 12 months warranty.

Technical Specifications

HAND PIECE:-
Working voltage: 14.4 V
Output power: ≥90W
Unit rise in temp: ≤25°C
Oscillations: 0-15000 (osc/min)
Noise: ≤75db

CHARGER:-
Input voltage: AC 220V 50HZ
Output power: 14.4v 900ma
Input power: 30VA

BATTERY:-
voltage: 14.4 V
Charge Time: 3 Hrs.
Capacity: 1800MA
Estimated Uses: 120-150 times charge-discharge
Nickel-Metal Hydride battery (NI-MH battery)
Duty Cycle: 25 minutes
Free Run Time: 40 Minutes

EMT Drill Hand Piece

The EMT drill hand piece is useful in nailing procedures.

Salient Features –

  1. The whole power tool is autoclavable except Battery and Battery Charger.
  2. The Machine is autoclavable at 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa.
  3. The machine is low noise and convinient to use.
  4. Axial run-out of cincentricity is within 0.05mm
  5. Semi-luser surface treatment technology to give anti slip grip comfort to hold the equipment during surgery.
  6. Multipurpose interface is easier to use in Hospital during Surgery.
  7. The product bears 12 months warranty.

Technical Specifications

HAND PIECE:-
Speed Range (CPM/RPM): 0-600 rpm
Torque: 3.5N/M
Duty Cycle: 25 minutes with One Battery
Working voltage: 14.4 V
Output power: ≥90W
Unit rise in temp: ≤25°C
Noise: ≤65db
Cannulation: 4.0mm

CHARGER:-
Input voltage: 220V/50Hz
Output power: 13.2V, 700mA
Input power: 30VA

BATTERY:-
voltage: 13.2v
Capacity: 1600MA
Charge Time: 3 Hrs.
Duty Cycle: 25 minutes
Estimated Uses: 300 times charge-discharge
Free Run Time: 40 Minutes
Nickel-Metal Hydride battery (NI-MH battery)
